The-One-File

There can only be One File. Map networks, smart homes, sports plays, mind maps, infrastructure or anything with nodes and connections. Animated zones, replay video export, enterprise encryption, full styling. Works offline, opens anywhere, saves into itself.

The Networkening edition adds live status monitoring and icons from selfh.st/icons, MDI, and Simple Icons. Still one file.

*TheOneFile_Verse adds an easily deployable, Docker based, real time collaboration wrapper that enables multiple users to create, edit and share together!

TheOneFile_Verse /\ 2.0.0 6-6-26 : That 2.0 Glow

• Thank you to everyone who has/will use. Thank you to everyone who has helped in every way
  • See TheOneFile_Verse changelog for full 2.0.0 list

Version 4.1.5 /\ 3-26-26 : Enhanced ‘Create’, UI polish and squashing a sneaky bug and TheOneFile_Verse 1.8.6

• Enhanced Create
  • Added more options to the Create New Node & Rack modals.
  • Added icon preview box to the Create New Node & Rack modals.
• Bug Fixes
• Core Edition & Networkening
  • Fixed Assigned Rack dropdown snapping back to “None” after changing in the edit Node and Rack sidebar/footer
  • See Changelog for full update details

Demos

• Core Edition

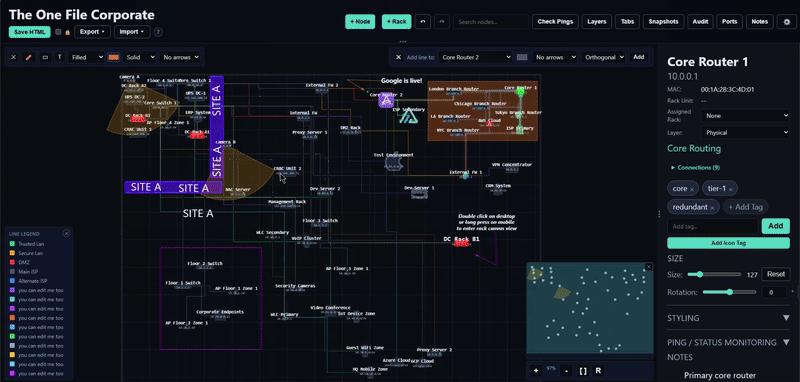

  • Core: Corporation Demo

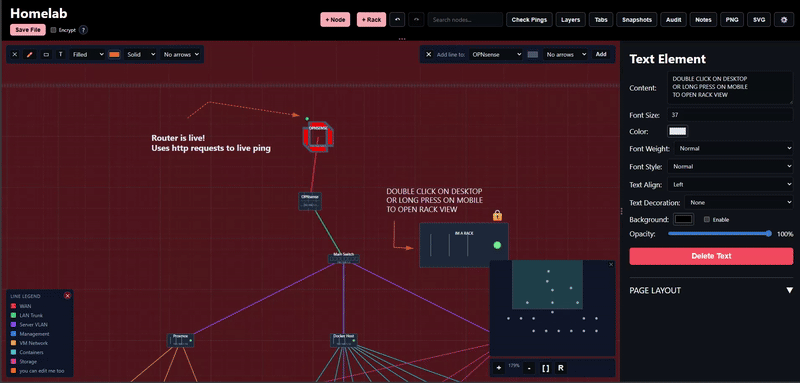

  • Core: Homelab Demo
• Networkening Edition
  • Networkening: Corporate Demo
  • Networkening: Homelab Demo
• TheOneFile_Verse Edition
  • TheOneFile_Verse online demo
  • join from different browsers to see real time changes
  • TheOneFile_Verse landing page
  • TheOneFile_Verse admin demo

Download

• the-one-file.html
• theonefile-networkening.html

Core vs Networkening vs TheOneFile_Verse

Feature	theonefile.html	theonefile-networkening.html	TheOneFile_Verse
All core features	✓	✓	✓
Create/edit/save topologies	✓	✓	✓
Shapes, lines, styling	✓	✓	✓
U slot rack topologies	✓	✓	✓
Add text labels anywhere	✓	✓	✓
Draw rectangles/boxes	✓	✓	✓
Free draw custom lines	✓	✓	✓
Keyboard shortcuts	✓	✓	✓
Encryption, export	✓	✓	✓
Bulk operations	✓	✓	✓
Multi select	✓	✓	✓
AES 256 GCM encryption (OPTIONAL)	✓	✓	✓
Live node search	✓	✓	✓
Per device styling	✓	✓	✓
Mobile optimized	✓	✓	✓
Offline only	✓		✓
No dependencies	✓		✓
MDI Icons		✓	✓
Simple Icons		✓	✓
selfh.st/icons		✓	✓
Auto Status Checking		✓	✓
Live Ping/Health Status		✓	✓
Real time, multi user collaboration		✓	✓

Docker & TheOneFile_Verse

docker run -d -p 10101:10101 -v theonefile-data:/app/data ghcr.io/gelatinescreams/theonefile_verse:latest

Or with docker compose, create a docker-compose.yml:

services:
  theonefile_verse:
    image: ghcr.io/gelatinescreams/theonefile_verse:latest
    ports:
      - "10101:10101"
    volumes:
      - ./data:/app/data
    restart: unless-stopped

Then run:

docker compose up -d

Open http://localhost:10101

• More information on TheOneFile_Verse

Core + Networkening Editions Download:

• Core the-one-file.html
• Networkening theonefile-networkening.html

Features

• Zero coding knowledge required
• Zero config files
• Draw anywhere: add text labels, boxes, and custom lines to annotate your topology
• Full keyboard shortcut support for power users
• Advanced keyboard navigation with arrow keys, tab cycling, and focus controls
• Node locking to prevent accidental changes to positioned elements
• Node grouping to move related components together
• Touch optimized mobile interface with gesture support

Canvas and Navigation

• Large zoomable and pannable workspace
• Minimap with viewport tracking
• Works with touch and mobile
• Clear grid and boundary indicators
• Precise zoom controls with level display
• Right click context menu for quick actions
• Free Draw Mode Draw custom polylines, rectangles, and text labels anywhere:
  • Custom lines with points you place
  • Rectangles (filled or outlined) for zones/boundaries
  • Text labels with full styling (font, size, color, weight, alignment)
  • Customizable colors, line styles (solid/dashed/dotted), and arrows
• Keyboard shortcuts for power users (undo/redo, copy/paste, zoom controls, node navigation)
• Arrow key nudging for pixel perfect positioning (1px or 10px with Shift)
• Tab cycling to quickly navigate through all nodes
• Focus key to auto zoom to selected nodes

Nodes

• Multiple shapes for common devices including servers, routers, switches, firewalls, and clouds
• Icon shapes from MDI, Simple Icons, and selfh.st/icons available in the theonefile-networkening.html version
• Editable name, IP, role, tags, and notes
• Editable icon shapes from MDI, Simple Icons, and selfh.st/icons available in the theonefile-networkening.html version
• Resizable with full styling controls
• Custom fonts, colors, and text offsets
• Per breakpoint styling for desktop, tablet, mobile, and fold layouts : customize appearance independently for each screen size
• Right click to clone nodes with smart positioning
• Multi select support with click drag or right click selection
• Lock nodes to prevent accidental movement while editing
• Group nodes to move multiple related nodes as a single unit
• Visual indicators for locked and grouped nodes

Racks

• Create rack nodes to represent physical server racks
• Enter rack view by double clicking a rack node (or long press on mobile)
• Inside rack view, see a vertical rack with U unit markings
• Assign devices to specific U positions within racks
• Set device height in rack units (1U, 2U, 4U, etc.)
• Visual rack capacity indicator shows available vs used space
• Nodes assigned to racks appear in both topology and rack views
• Quick navigation: double tap empty space on mobile to exit rack view
• Automatic rack assignment when creating nodes while in rack view

Layer System

• Choose between physical, logical, security and application layers for anything and easily toggle visibility between them
• Toggle layer visibility to focus on specific aspects of your topology
• Filter view to show only nodes and connections in selected layers
• Simplifies complex topologies by letting you focus on one aspect at a time

Lock and Group System

• Lock individual or multiple nodes to prevent accidental movement
  • Visual lock indicator appears on locked nodes
  • Locked nodes cannot be moved by mouse, touch, or keyboard
  • Keyboard shortcut (L) for quick lock/unlock
  • Works with multi selection for batch locking
  • Lock button in mobile multi select menu
• Group nodes to move together
  • Create groups of related nodes that move as a unit
  • Visual group indicator (dashed outline) on grouped nodes
  • Drag any member of a group to move all nodes in that group
  • Keyboard shortcut (G) to create/dissolve groups
  • Groups respect individual node lock status
  • Group button in mobile multi select menu
  • Perfect for logical grouping (clusters, zones, related infrastructure)

Bulk Operations

• Multi select nodes for batch operations
• Bulk Align: Align selected nodes left, right, top, or bottom
• Bulk Distribute: Evenly space nodes horizontally or vertically
• Bulk Clone: Duplicate multiple nodes at once
• Bulk Delete: Remove multiple nodes simultaneously
• Bulk Lock: Lock or unlock multiple nodes at once
• Bulk Group: Create or dissolve node groups
• Desktop and mobile toolbars optimized for each platform

Network Monitoring (theonefile-networkening.html only)

• Live status indicators on nodes (online/offline/checking)
• Manual ping/status check for individual nodes
• Auto Status Checking with configurable intervals (5-3600 seconds)
• Status check scheduling with next check timer
• Last run timestamp tracking
• Per node ping enable/disable settings
• Visual ping indicators with color coding

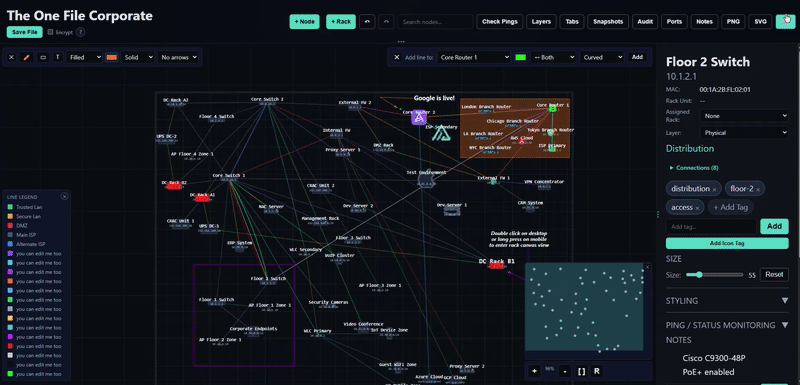

Connections

• Smart routed lines between nodes
• Multiple links between the same devices
• Optional direction arrows
• Custom width, color, and labels
• Port labels (e.g., eth0, gi0/1)
• Notes for VLANs, protocols, policies, and bandwidth

Legend (Bottom left)

• Can be hidden on both desktop and mobile
• Automatically built from line colors in use
• Editable labels
• note: only shows up after first line is generated.

Save System

• Exports a brand new updated HTML file
• All data is embedded in the file
• Optional AES 256 GCM encryption for sensitive information
• Browser native crypto only
• No servers involved
• Version theonefile-networkening.html uses 3 server calls from cdn.jsdelivr.net to load icons

Security & Encryption

Industry Standard Protection:

• AES 256 GCM encryption (authenticated encryption with 256 bit keys)
• PBKDF2 key derivation with:
  • 200,000 iterations (protection against brute force attacks)
  • SHA 256 hashing algorithm
  • Cryptographically secure random 16 byte salt per file
  • Unique 12 byte initialization vector (IV) per encryption
• Browser native Web Crypto API no third party encryption libraries
• Zero server communication all encryption/decryption happens locally in your browser
• Password confirmation required before saving encrypted files
• Non recoverable no backdoors, no password reset, no recovery options
  • If you forget your password, your data is permanently inaccessible
  • This is a feature, not a bug so your data stays protected
• 3 attempt limit on decryption to prevent brute force attempts
• Encrypted data format: Salt + IV + ciphertext embedded directly in the HTML file

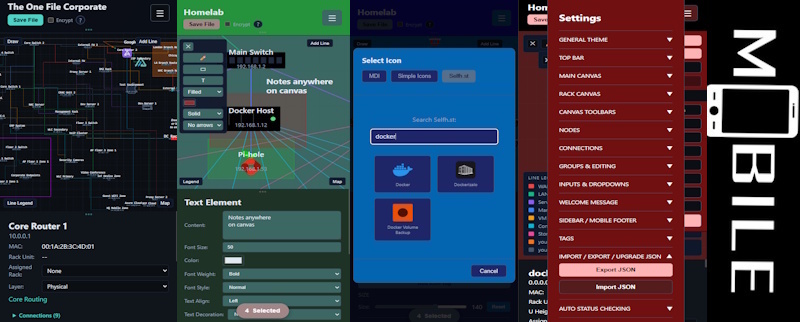

Mobile Experience

• Completely rewritten mobile UI in version 3.0
• Resizable mobile footer with drag handle for custom panel sizing
• Touch optimized controls throughout the interface
• Mobile bulk operations modal for efficient multi node editing with Lock and Group buttons
• Enhanced double tap gestures:
  • Double tap nodes to select multiple (equivalent to right click on desktop)
  • Double tap to clone and align nodes
  • NEW: Double tap empty space in rack view to quickly exit to topology view
• Responsive layout that adapts to screen orientation
• Optimized for phones, tablets, and foldable devices
• Smart gesture detection prevents accidental actions during panning

Keyboard Shortcuts

keyboard-shortcuts.md

Shortcut	Action
Arrow Keys	Move selected node(s) 1 pixel
Shift + Arrow Keys	Move selected node(s) 10 pixels
Tab	Cycle to next node
Shift + Tab	Cycle to previous node
F	Focus camera on selected node(s)
L	Lock/unlock selected node(s)
G	Group/ungroup selected nodes (requires 2+)
Ctrl/Cmd + Z	Undo
Ctrl/Cmd + Y	Redo
Ctrl/Cmd + Shift + Z	Redo (alternative)
Ctrl/Cmd + C	Copy selected node
Ctrl/Cmd + V	Paste node
Ctrl/Cmd + D	Duplicate selected node
Ctrl/Cmd + A	Select all nodes
Ctrl/Cmd + Plus	Zoom in
Ctrl/Cmd + Minus	Zoom out
Ctrl/Cmd + 0	Reset view
Space + Drag	Pan canvas
Escape	Clear selection
Delete	Delete selected item(s)
Scroll	Zoom in/out
Shift + Click/Drag	Multiple Select (marquee selection)

Recording

Key	Action
R	Start/stop real time recording
Shift+R	Start/stop step by step recording
Space	Add step (step recording) / Play/Pause (playback)
P	Play recording

Mobile Gestures & Touch Controls

mobile-gestures.md

Gesture	Action	Context
Double tap node	Add to multi selection	Any view
Double tap empty space	Exit to topology view	Rack view only
Long press rack node	Enter rack view	Topology view
Pinch	Zoom in/out	Any view
One finger drag (empty space)	Pan canvas	Any view
One finger drag (node)	Move node	Any view
Tap selected node	Open properties panel	Any view
Drag footer handle	Resize mobile panel	Mobile only

Customization

• 100% control theme editor
• Per breakpoint node styling for responsive designs
• Custom color schemes and backgrounds
• Adjustable panel sizes and layouts

Supported Browsers

• Chrome and Edge
• Firefox
• Safari desktop and mobile
• Modern Android and iOS browsers

If the browser is reasonably modern, it should work.

Credits

Icon support for theonefile-networkening.html version powered by:

• selfh.st/icons : Popular self hosted icons
• Material Design Icons : 7,000+ open source icons
• Simple Icons : Free SVG icons for popular brands

Thank you to all the icon creators and maintainers for making these resources freely available.
